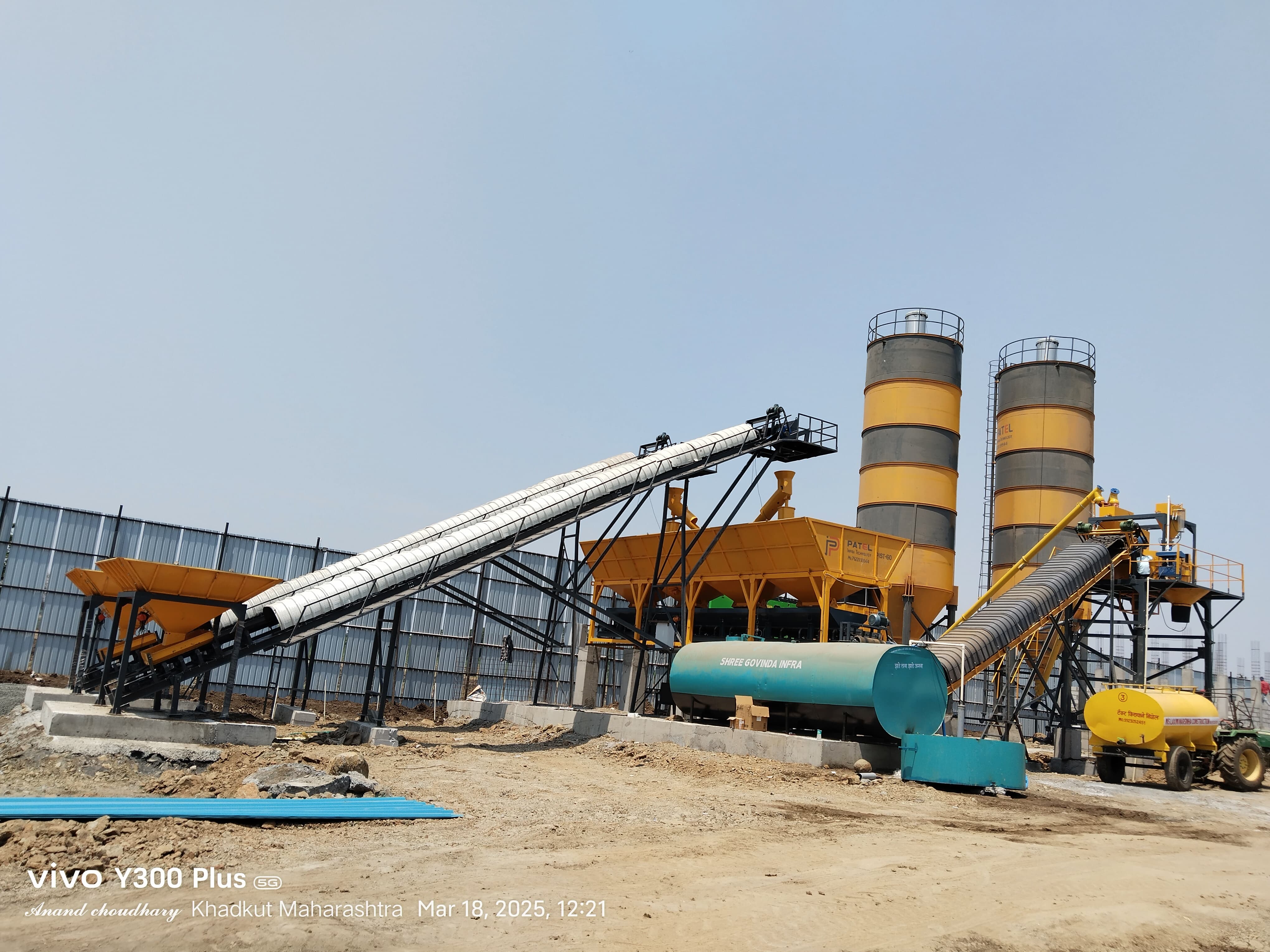

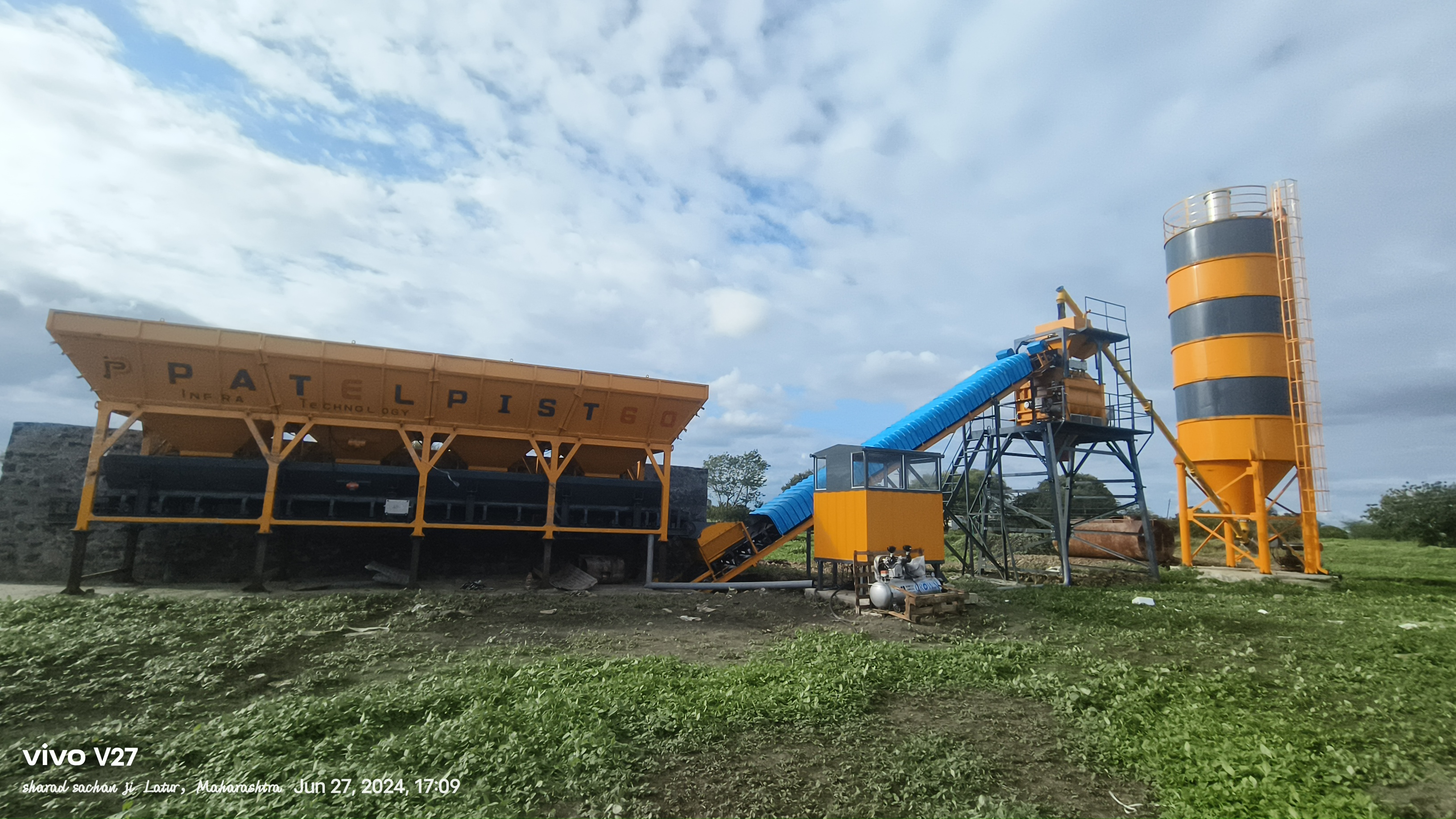

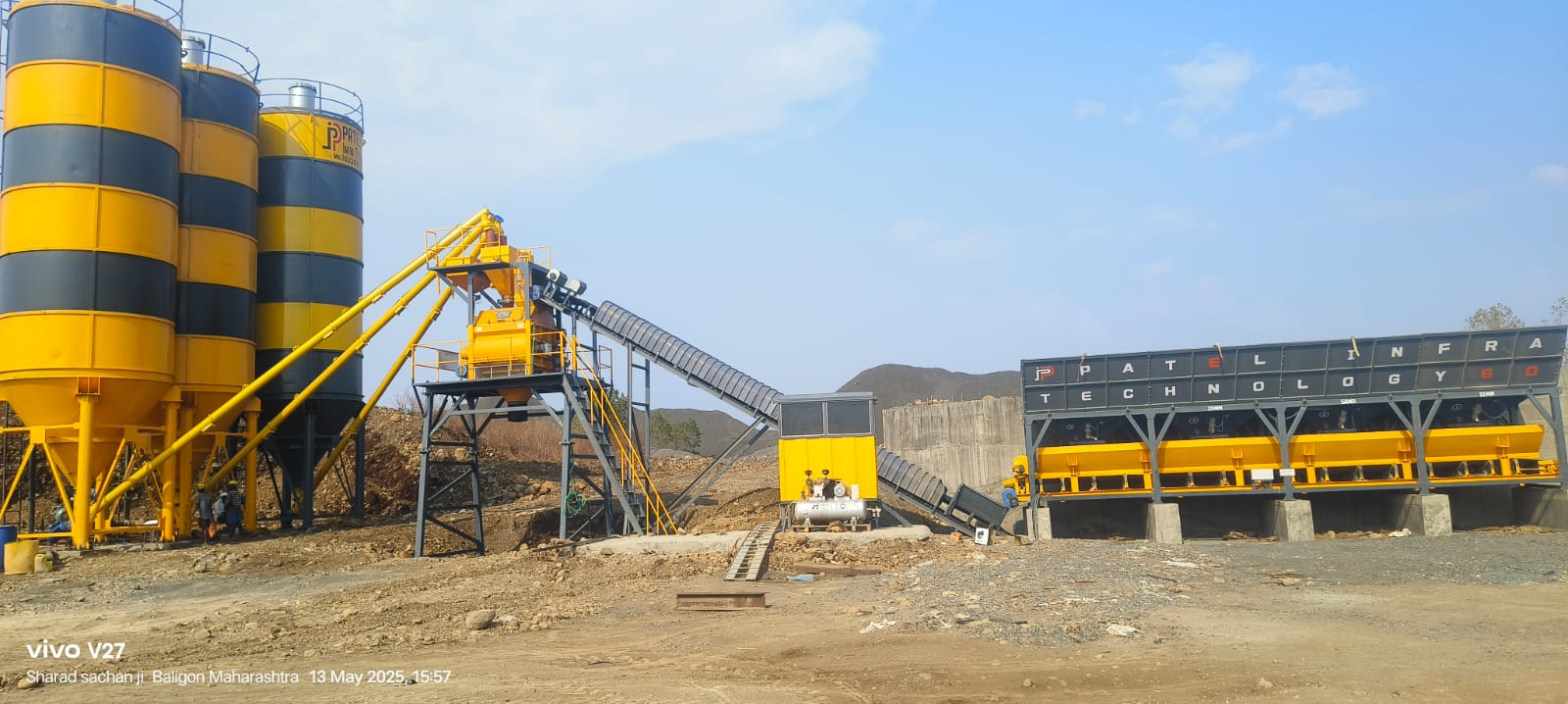

Stationary Concrete Batching Plant is a fully automatic inline Concrete Batching Plant with four inline bin on single chassis. having adequate capacity of gravel & sand hoppers, weighing conveyor suspended on electronic load cells, this type of plant comes with three types of mixer pan mixer, planetary mixer & twin shaft mixer Mixer. Twin Shaft Mixer consists of twin drums with two counter rotating rotors and specifically angled paddles. The rotors overlap in the center of the mixer and the paddles completely sweep the bottom and mix all the material at the same time. In zone b the materials have a main movement counterclockwise at the perimeter of the mixer.
Plant Model | PIST 60 |
Plant Capacity | 60 Cum/Hr |
Mixer Type & Capacity | Twin shaft Mixer 1 Cm & 1.25 Cm |
Mixer Motor | 2 x 25 Hp /2 x 30 Hp |
Aggregate Storage | 15 x 4 = 60 CM Inline Bin Type |
Cement Storage | 50 Bag Capacity |
Cement Feeding System | 219 Dia x 10 Mtr Screw Conveyor |
Aggregate Weighing System | Plain Conveyor Belt |
Material Transfer Conveyor | Chevron Type Conveyor Belt |
Cement Weighing System | 550 Kg Cement Hopper |
Water Weighing System | 250 kg Water Hopper |
Additive Weighing System | 10 Kg Acrylic Container |
Control Panel | PLC Based Control Panel |
Air Compressor | 3 HP |
Total Connected Power | 100 HP/120 HP |
