Product Details:
- General Use Industrial
- Material Mild Steel
- Automatic Yes
- Power Source Electric
- Supply Ability 100 Unit Per Month
patelinfratechnology@gmail.com
+91 7622099944

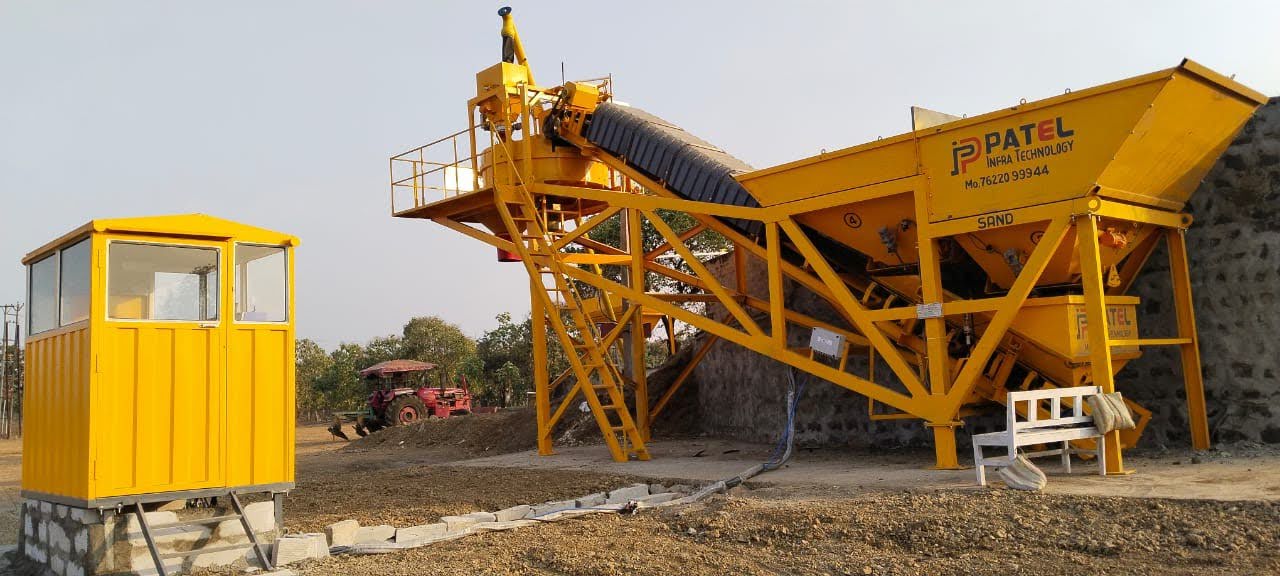

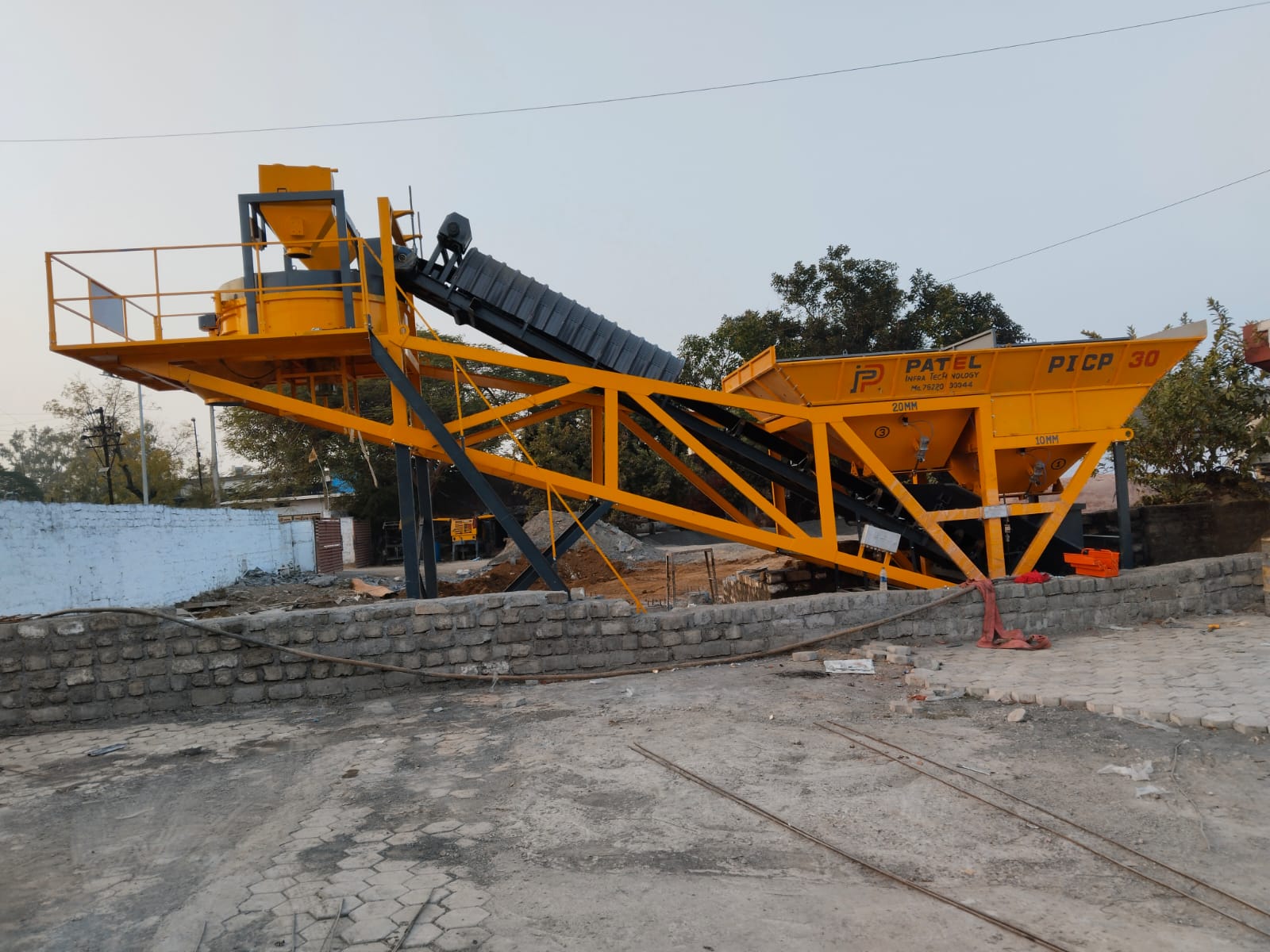

Compact Concrete Batching Plant is a fully automatic, compact Concrete Batching Plant with gravel & sand hoppers on single chassis with two-by-four bin. The plant comprises of adequate capacity gravel & sand hoppers, weighing conveyor suspended on electronic load cells, Pan Mixer unit, cement bin with screw conveyor, Rubber belt-type charging conveyor, PLC-based control panel.
PLANT MODEL | PICP 30 |
Plant Capacity | 30 Cum/Hr |
Mixer Type & Capacity | Pan / Planetary Mixer 750/500 |
Mixer Motor | 25 Hp |
Aggregate Storage | 4 X 4 = 16 Cm Compartment Type |
Cement Storage | 50 Bag Capacity |
Cement Feeding System | 168 Dia X 10 Mtr Screw Conveyor |
Aggregate Weighing System | Chevron Type Conveyor Belt |
Cement Weighing System | 300 Kg Cement Hopper |
Water Weighing System | 200 Kg Water Hopper |
Additive Weighing System | 6 Kg Acrylic Container |
Control Panel | Automatic Plc Based Control Panel |
Air Compressor | 2 Hp |
Total Connected Power | 60 Hp |
